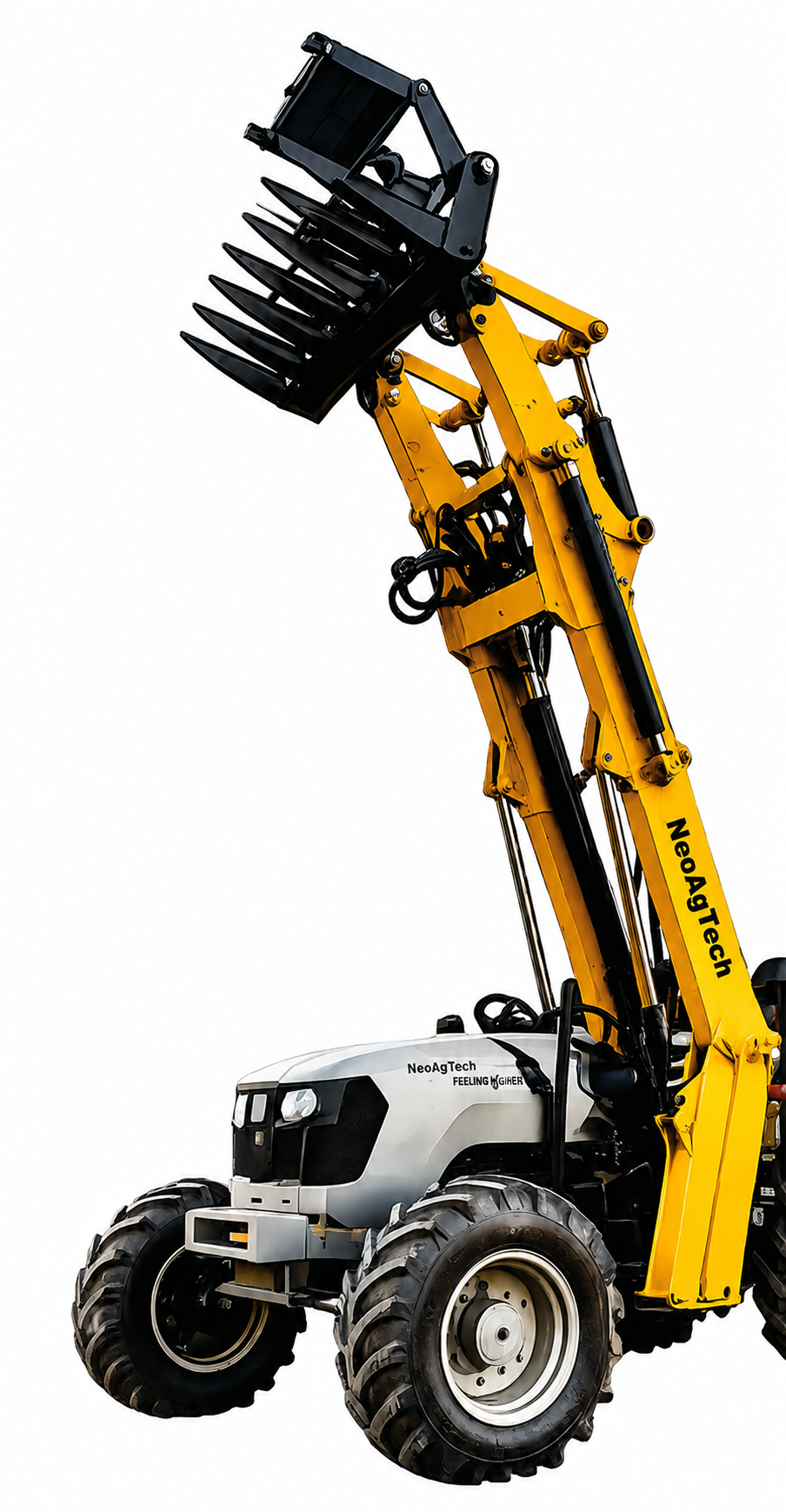

AT2400 Heavy Duty Telescopic Loader
Built to Reach Higher. Maximum Reach. Maximum Productivity.
The AT2400 is NeoAgTech’s flagship telescopic loader designed for high-reach and heavy-duty material handling operations. Featuring an extended telescopic boom and advanced hydraulic system, it delivers exceptional loading height, reach and operational efficiency.
Target Applications
MAXIMUM PERFORMANCE
High lift capacity for heavy-duty task.
BUILT TO LAST
Strong, durable & reliable in every condition.
VERSATILE ATTACHMENT
Multiple attachment options for every application.
OPERATOR COMFORT
Smooth product for better productivity and safety.
Technical Specifications
| Specification | Dimension (Foot) | Dimension (mm) |
|---|---|---|
| Normal Reach at Ground | 11' 8" | 3556 |
| Telescopic Reach at Ground | 17' | 5182 |
| Normal Dump Height / Load-over Height | 13' 8" / 16' | 4166 / 4877 |
| Telescopic Dump Height / Loader Height | 20' 11" / 22' | 6375 / 6706 |
| Loader Hinge Pin Height (Normal / Telescope) | 17' / 22' | 5182 / 6706 |
| Roll-back Angle / Dump Angle | 43 Degree / 43 Degree | -- |

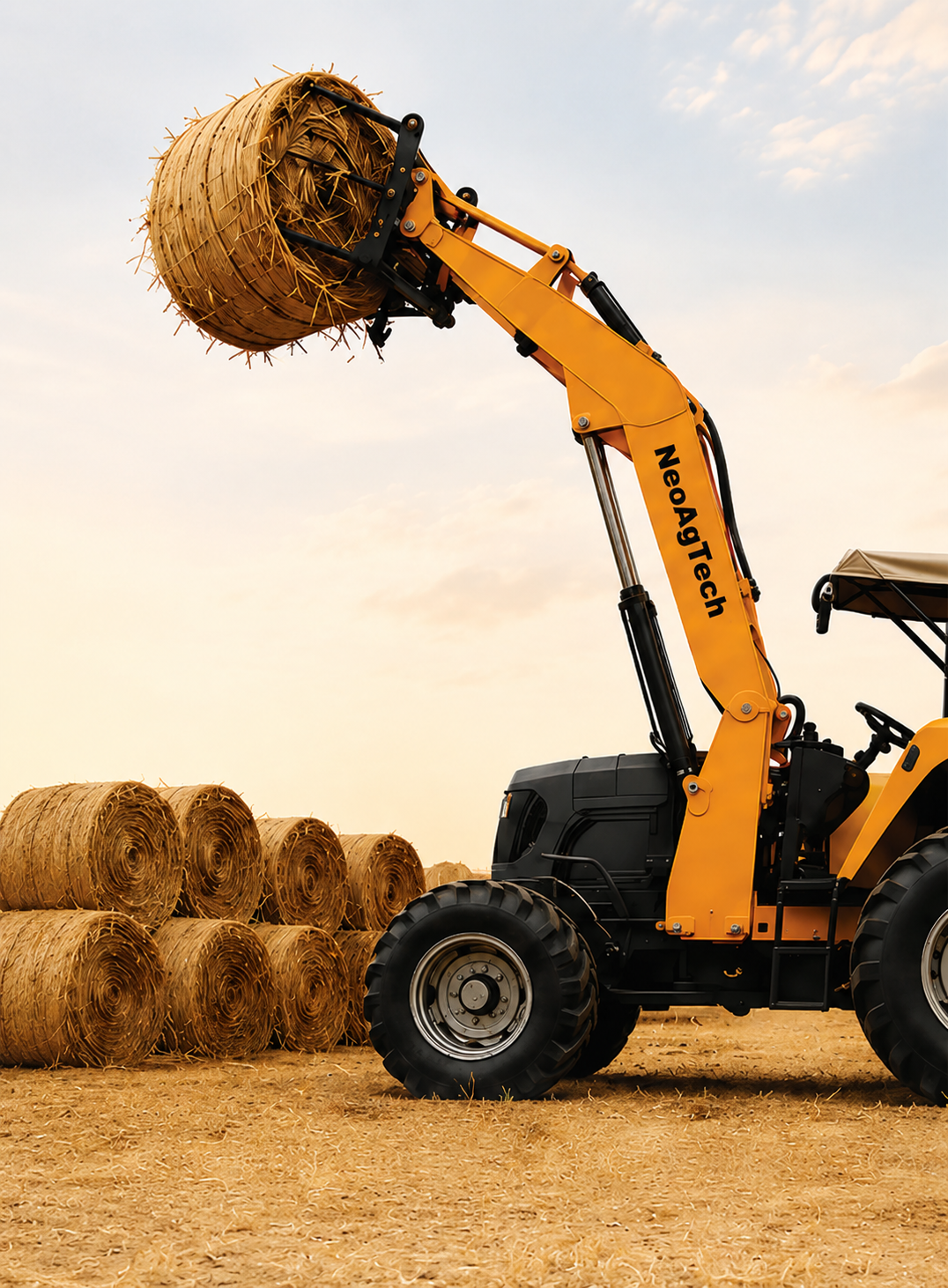

AT1200 Pro — Professional Performance Loader
More Reach. More Productivity. Built for Professionals.
A versatile high-performance loader designed for bale handling, material movement and everyday agricultural operations. It is an advanced version developed for customers requiring higher productivity, enhanced durability and intensive daily operation.
Target Applications
MAXIMUM PERFORMANCE
High Lift Capacity, Faster Loading, Superior Reach.
BUILT TO LAST
Heavy-Duty Structure, Rugged Reliability, Proven Durability.
VERSATILE ATTACHMENTS
Multiple Attachments for Every Application.
OPERATOR COMFORT
Smooth Operation, Better Visibility, Enhanced Productivity.
Technical Specifications
| Specification | Dimension (Foot) | Dimension (mm) |
|---|---|---|
| Reach at Ground | 8' 4" | 2590 mm |
| Dump Height | 13' 8" | 4164 mm |
| Load-over Height | 16' 6" | 5030 mm |
| Loader Hinge Pin Height | 13' 0" | 3962 mm |
| Roll-back Angle / Dump Angle | 45 Degree / 45 Degree | 45 / 45 Degree |

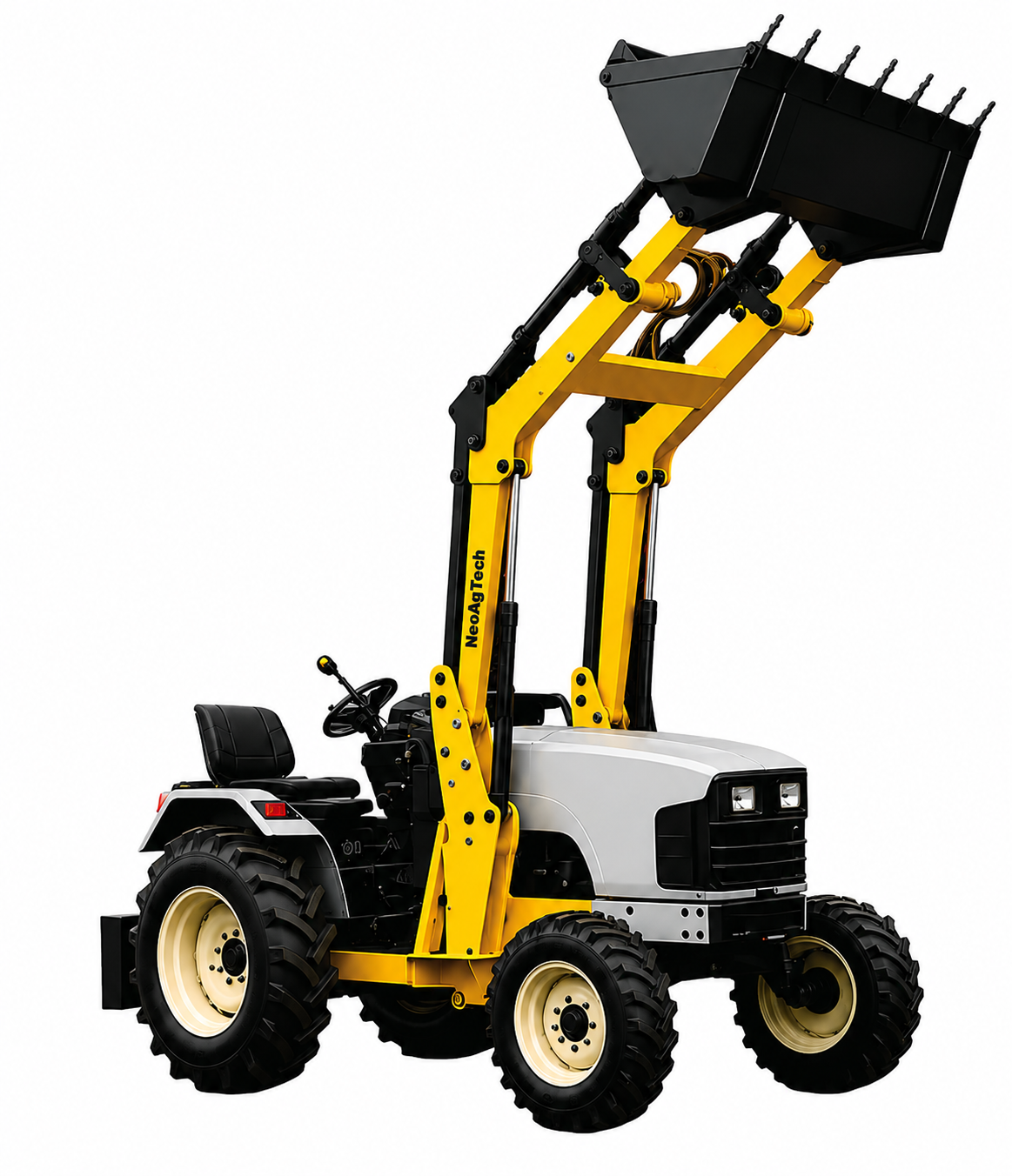

AT1200 Detachable Loader
Compact Fit. Powerful Lift. Compact Design.
The AT1200 is designed for customers seeking telescopic functionality with a compact footprint. It combines excellent lifting performance with maneuverability, making it ideal for farms, warehouses and medium-duty industrial applications. Engineered for Lower HP Tractors and built for maximum utility.
COMPATIBLE WITH LOWER HP
More tractors. More versatility. Engineered specially for utility.
DETACHABLE DESIGN
Quick attach & detach. Work the way you exactly need.
BUILT FOR PERFORMANCE
Compact in size. Powerful and reliable in every single lift.
ROBUST CONSTRUCTION
Built tough for long lasting durability and performance.
Technical Specifications
| Specification | Dimension (Foot) | Dimension (mm) |
|---|---|---|
| Reach at Ground | 4' 6" | 1341 mm |
| Dump Height | 10' 6" | 3200 mm |
| Load-over Height | 12' 6" | 3810 mm |
| Loader Hinge Pin Height | 11' 6" | 3505 mm |
| Roll-back Angle / Dump Angle | 45 Degree / 45 Degree | 45 / 45 Degree |
HYDRAULIC ATTACHMENTS FOR MAXIMUM VERSATILITY
One loader. Many attachments. Unlimited possibilities.
Bale Spear
Bale Grabber
Grapple Bucket
Forklift Bucket
